MLM-LFO20EN/ MLM-LFO30EN
UNION BETWEEN TECHNOLOGY AND DESIGN
MLM laser markers combine design and technology at the same time, making the use of this equipment increasingly available to everyone. Thanks to its autofocus and automatic closing system, the machine itself will allow for a better work flow on larger productions.
SAFETY AND ERGONOMICS
Safety and ergonomics are the basis of MLM laser markers. The laser marker is equipped with a large front opening with automatic opening and closing, with a wide glazing on the two sides which, on the occasion, can be removed for working on larger parts. Preparation for the fume extractor.
SPECIFICATIONS
MODEL MLM-LFO20EN / MLM-LFO30EN
Laser Type optic fiber
power 20W / 30W
marking area 100mm x 100mm / 250MM X 250MM
marking speed ≤ 9000mm/s
Frequency 20KHZ~100KHZ
Precision ± 0,001mm
Wave lenght 1064±10nm
marking depth ≤ 0,2mm
minimum marking line thickness 0,01mm
Minimum thickness of the characters 0,2mm
Power supply AC220V±10% 50Hz or AC110V±10% 60Hz
cooling air cooling
Operational temperature 10-35°C
Generator duration 50000~100000 hours
os Windows 10
Compatible formats PLT, DXF, DST, BMP, JPG, JPEG, PNA, TIF, etc.

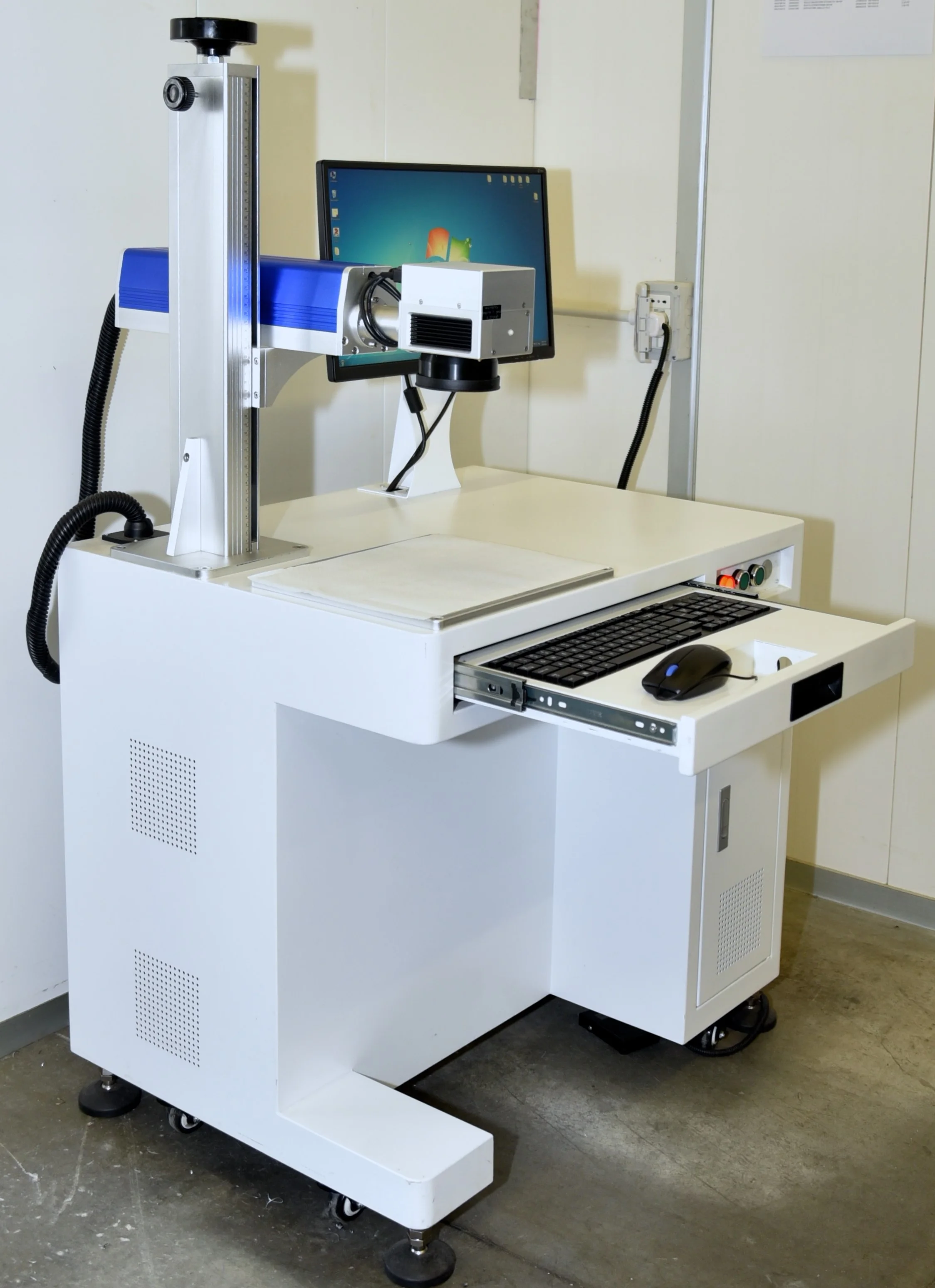

MLM-LFO20BS/ MLM-LFO30BS
UNION BETWEEN TECHNOLOGY AND PRACTICALITY
The MLM laser markers combine practicality and technology at the same time, making the use of this equipment, more and more affordable for everyone. Its compact structure and without barriers allows greater mobility during processing with minimum overall dimensions.
ENTRY LEVEL, BUT WITHOUT COMPROMISE
The MLM-LFO20BS laser marker represents the entry level of our line of equipment, but does not compromise on simplicity, ergonomics and quality. Perfect for larger components, the marker is equipped with a more extensive work surface that allows you to have multiple anchor points.
