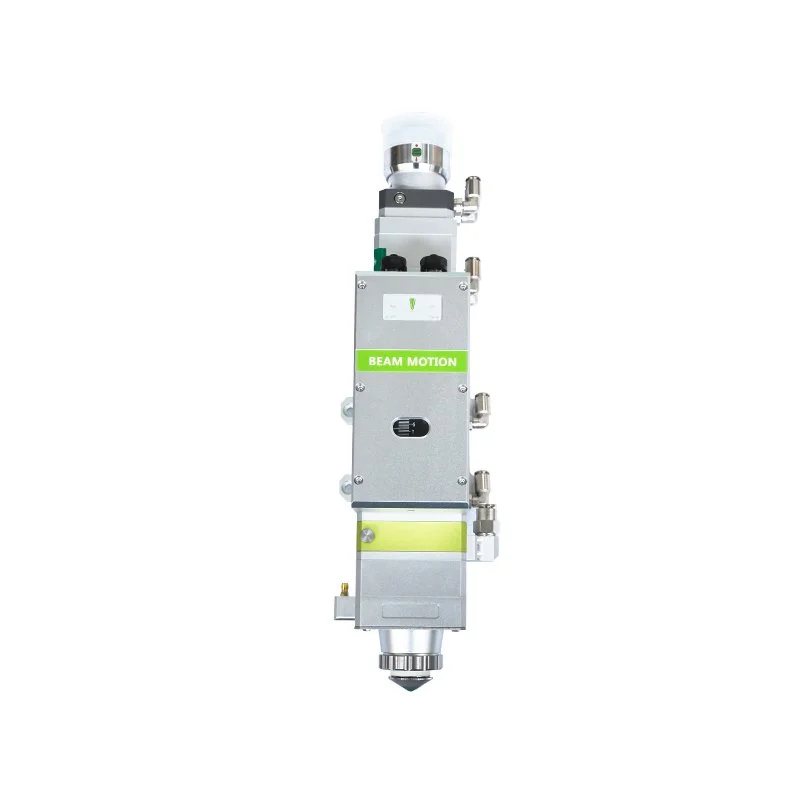

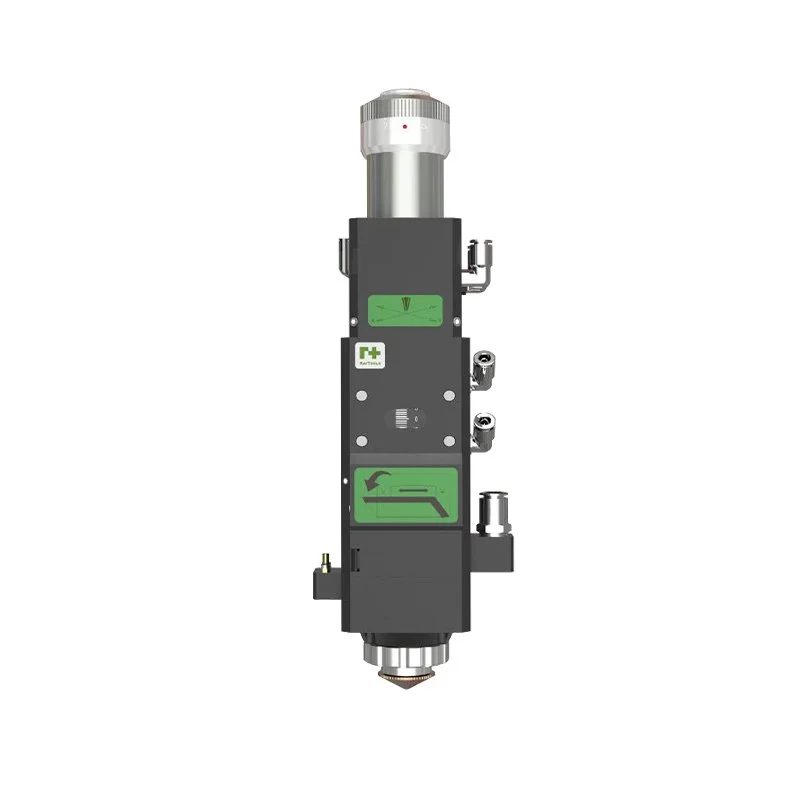

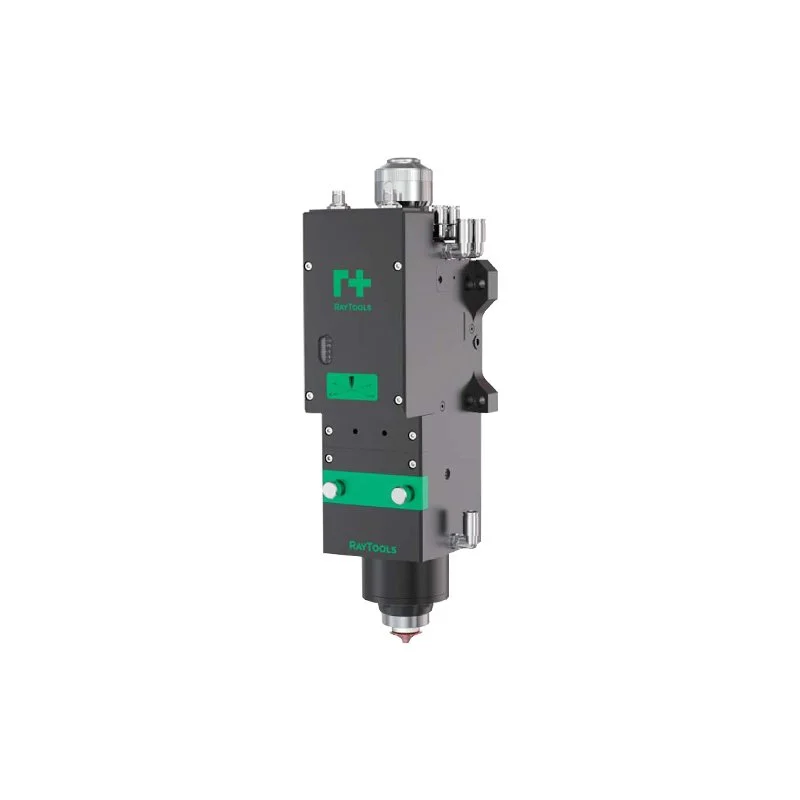

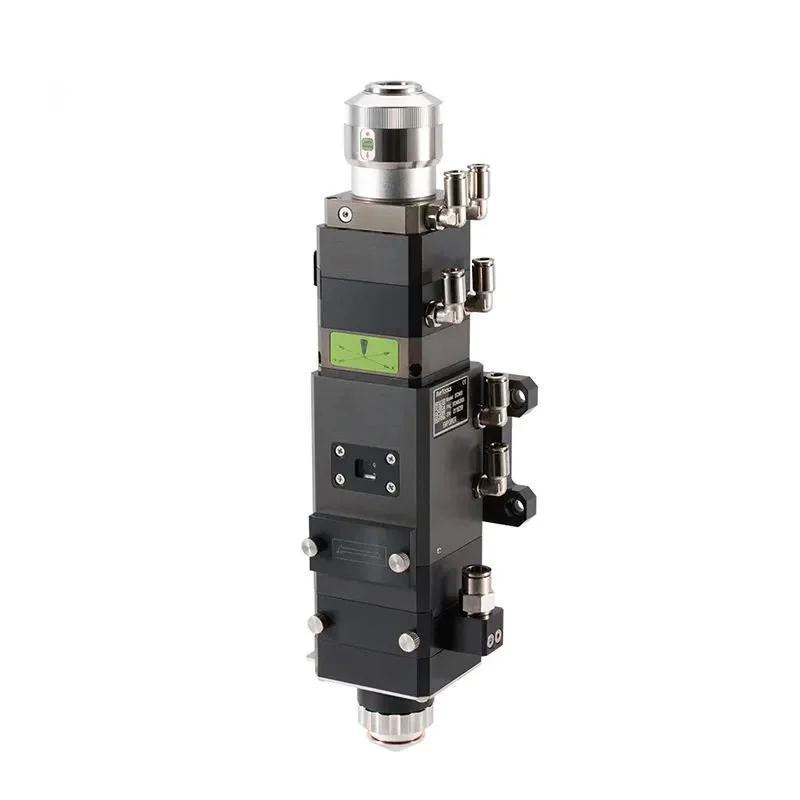

Raytools BM110 Fiber Laser Cutting Head For Laser Cutting Machine

Power Rating

3.3kW

Clear Aperture

28mm

Focal Length of Collimator

125mm, 150mm, 200mm

Nozzle Styles

Single layer, Double layer, Non - standard

Collimation Length

75mm, 100mm

Optical Fiber Interface

QBH,QD,GS

Cover Glasses

Collimation Side(Top)φ24.9*1.5mm

Focusing Side(Bottom): φ27.9*4.1mm

Diameter of Nozzle Tip

0.8mm，1.0mm，1.2mm，1.5mm，2.0mm，2.5mm，3.0mm，3.5mm，4.0mm，4.5mm，5.0mm

Assist Gas Pressure

≤30bar

Weight

12kg ‍
