‍Product Specifications

Optical Isolator

Yes

Yes

Yes

Nominal Average Output Power (W)

≥20

≥30

≥50

Single Pulse Energy (mJ)

1@20kHz

1@30kHz

1@50kHz

Beam Quality(M2)

<1.5

<1.5

<1.6

Beam Diameter(mm)

7±1

7±1

6~8

Pulse Duration(ns)

<120@20kHz

<120@20kHz

<150@50kHz

Pulse Repetition Rate(kHz)

20-60

30-60

50-100

Output Power Tunability(%)

10-100

10-100

10-100

Output Fiber Cable Length(m)

2.0

2.0

2.0

Working Voltage(VDC)

24±1

24±1

24±1

Power Consumption(20℃)(W)

200@20℃

300@20℃

340@20℃

Cooling

Forced Air Cooled

Forced Air Cooled

Forced Air Cooled

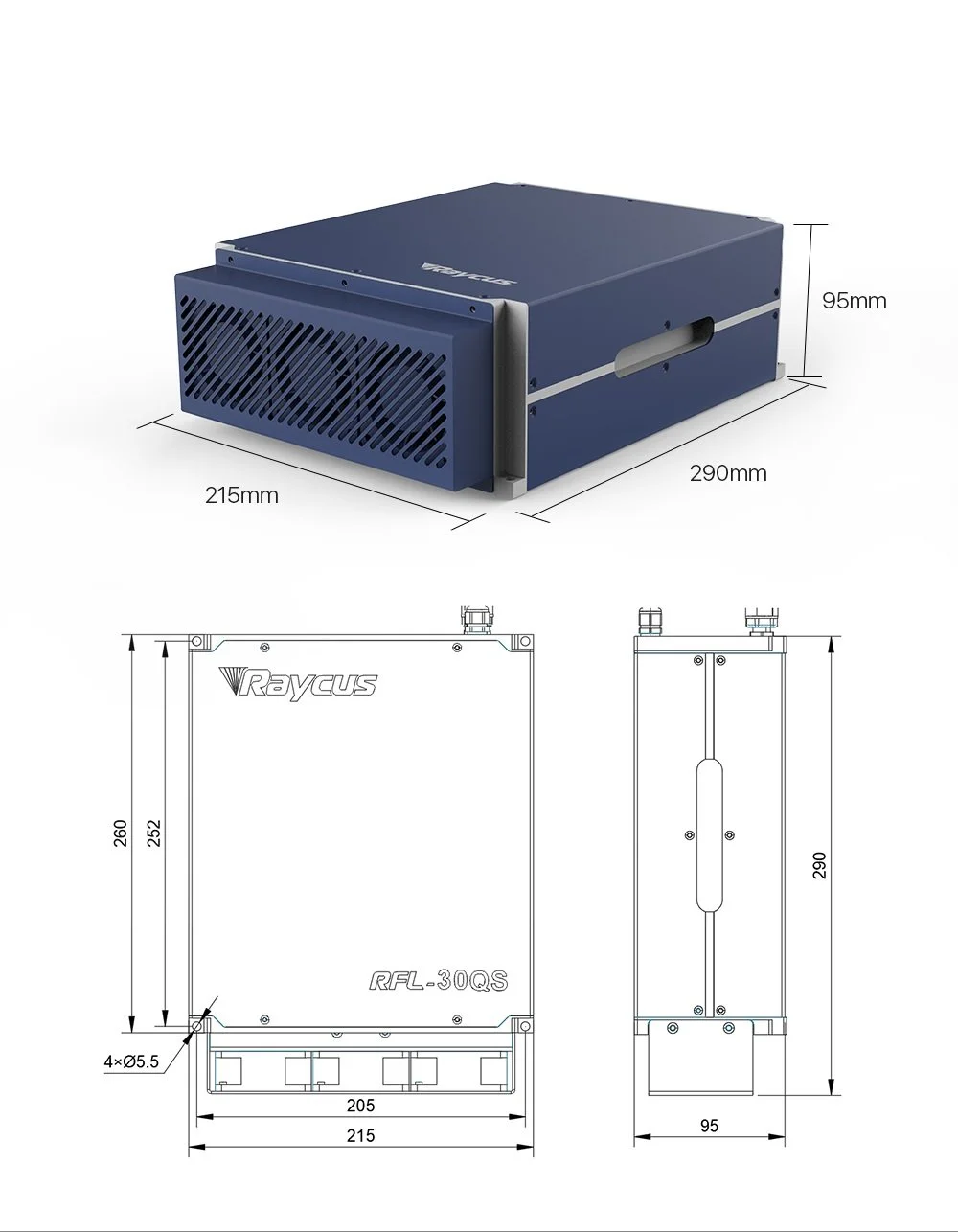

Dimension W×D×H(mm)

215×286×95

215×286×95

260×391×120

Operating Temperature(℃)

0℃~40℃

0℃~40℃

0℃~40℃

Store Temperature(℃)

-20℃~60℃

-20℃~60℃

-20℃~60℃

Humidity(%)

≤80%

≤80%

≤80%
