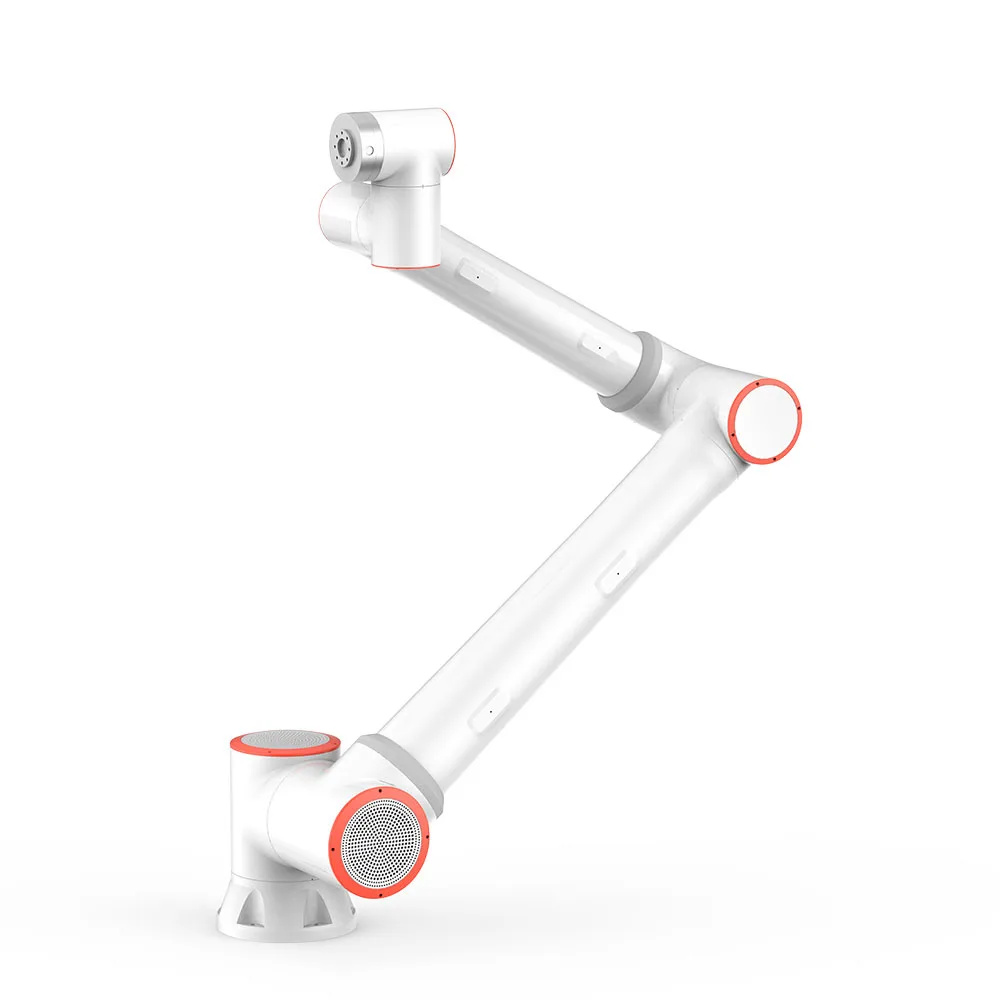

Collision-Resistant FR3 6-Axis Automatic Laser Welding Cobot 3kg Load Robot Smooth Weld Seam for Auto Parts/3C Products
Collision-Resistant FR3 6-Axis Automatic Laser Welding Cobot 3kg Load Robot Smooth Weld Seam for Auto Parts/3C Products
10.795,00 €
Product Description

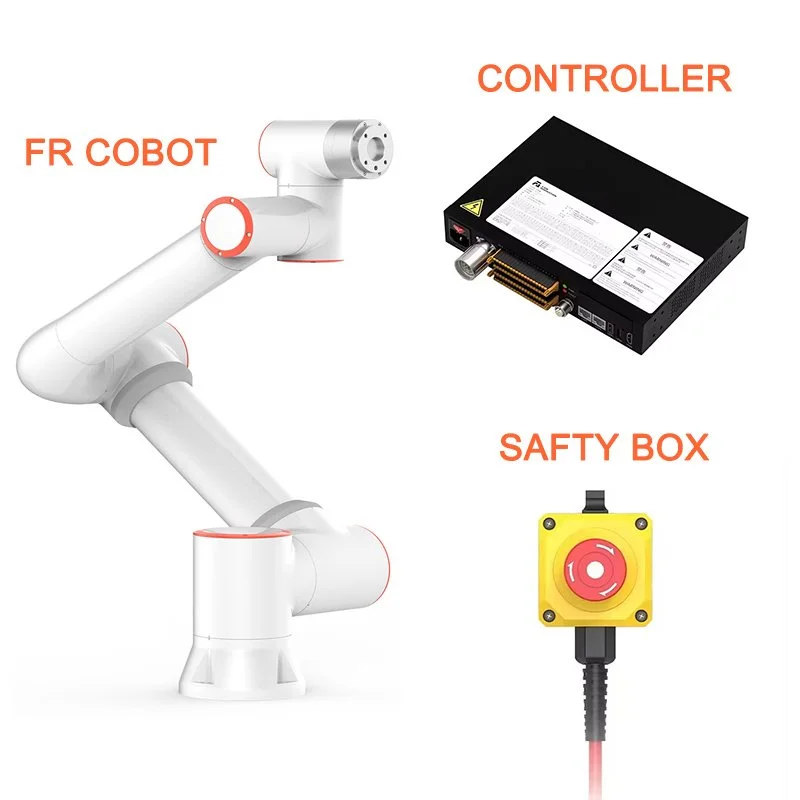

FR3
Our was established in 2019. Our founding team comes from Swiss Federal Institute of Technology, Harbin Institute of Technology, Nanjing University and other top universities. There is a robotics research center with Harbin Institute of Technology, and Academician Cai Hegao leads the scientific advisory team. We have the R & D and manufacturing capabilities of robot core components and complete machine systems such as robot controllers, precision reducers, and servo systems. The company has a robot and system manufacturing base of 10,000 square meters, providing reliable delivery and after-sales service for the majority of users.
● According to different payload and range, collaborative robot product line has five models: FR3, FR5,FR10,FR16& FR20. FR30
●The products are certified with CE, CR and ISO9001 quality management system, every robot joint has dual encoders so that can achieve higher precision. The open operating platform also lowers the barrier to use it in different scenarios.

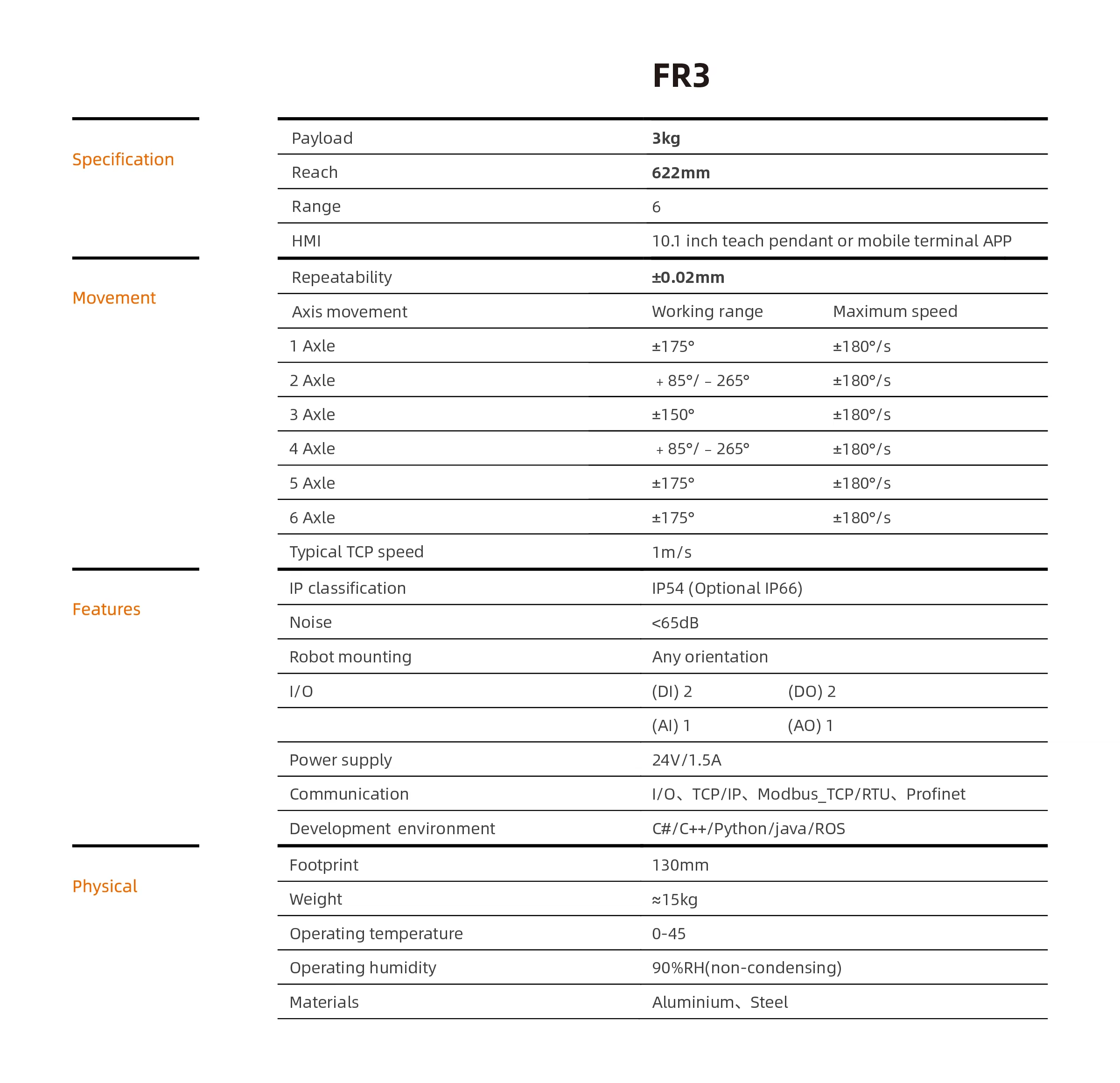

● The robot body adopts partial internal wiring, which is safe and environmentally friendlyProduct Specifications
specification | Payload | 3kg | |

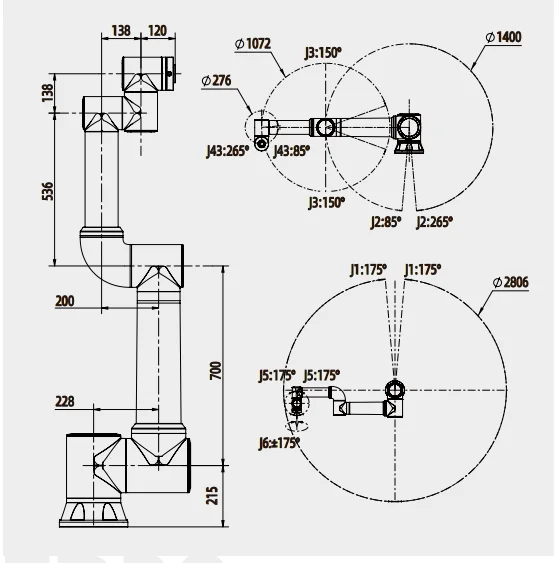

Reach | 622mm | ||
Degrees of freedom | 6 rotating joints | ||
HMI | 10.1 inch teach pendant or mobile terminal Web APP | ||
Movement | Repeatability | ±0.02mm | |
Pose repeatability oer ISO 9283 | ±0.03mm | ||
Axis movement | Working range | Maximum speed | |
1 axis | ±175° | ±120°/s | |
2 axis | ﹢85°/﹣265° | ±120°/s | |
3 axis | ±160° | ±120° | |
4 axis | ﹢85°/﹣265° | ±180°/s | |
5 axis | ±175° | ±180°/s | |
6 axis | ±175° | ±180°/s | |
Typical TCP speed | 2m/s | ||
Features | IP classification | IP54(IP65 Optional) | |
Noise | ＜70db | ||
Robot mounting | Any orientation | ||
I/O Ports | digital input (DI) 2 digital output (DO) 2 analog input(AI) 2 analog ouput(AO) 2 High speed pulse input 2 | ||
Tool I/O power supply | 24V/1.5A | ||
Physical | Footprint | 240mm | |
Weight | ≈15kg(Weight without wire) | ||
Operating temperature | 0-45℃ | ||
Operating humidity | 90%RH(non-condensing) | ||
Materials | Aluminium、Steel |

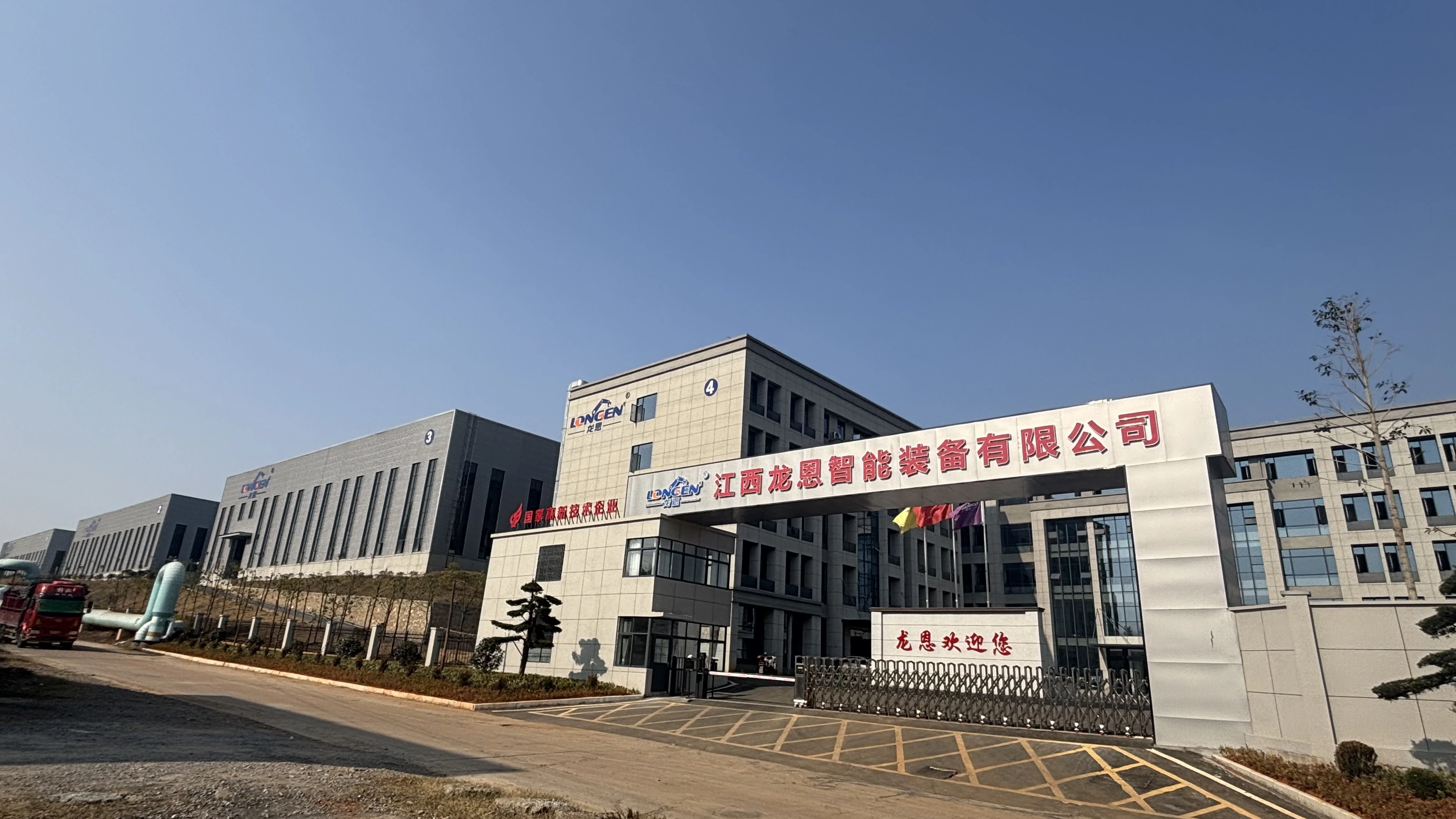

COMPANY PROFILE

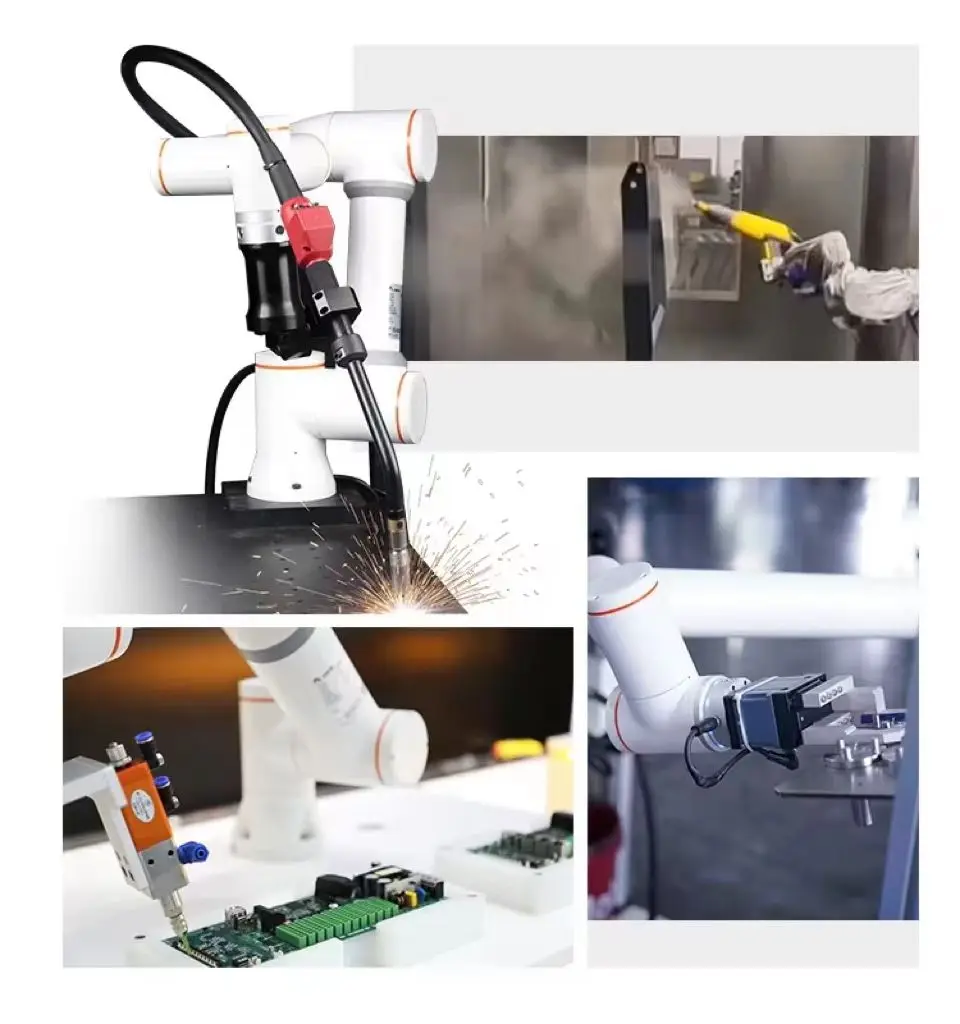

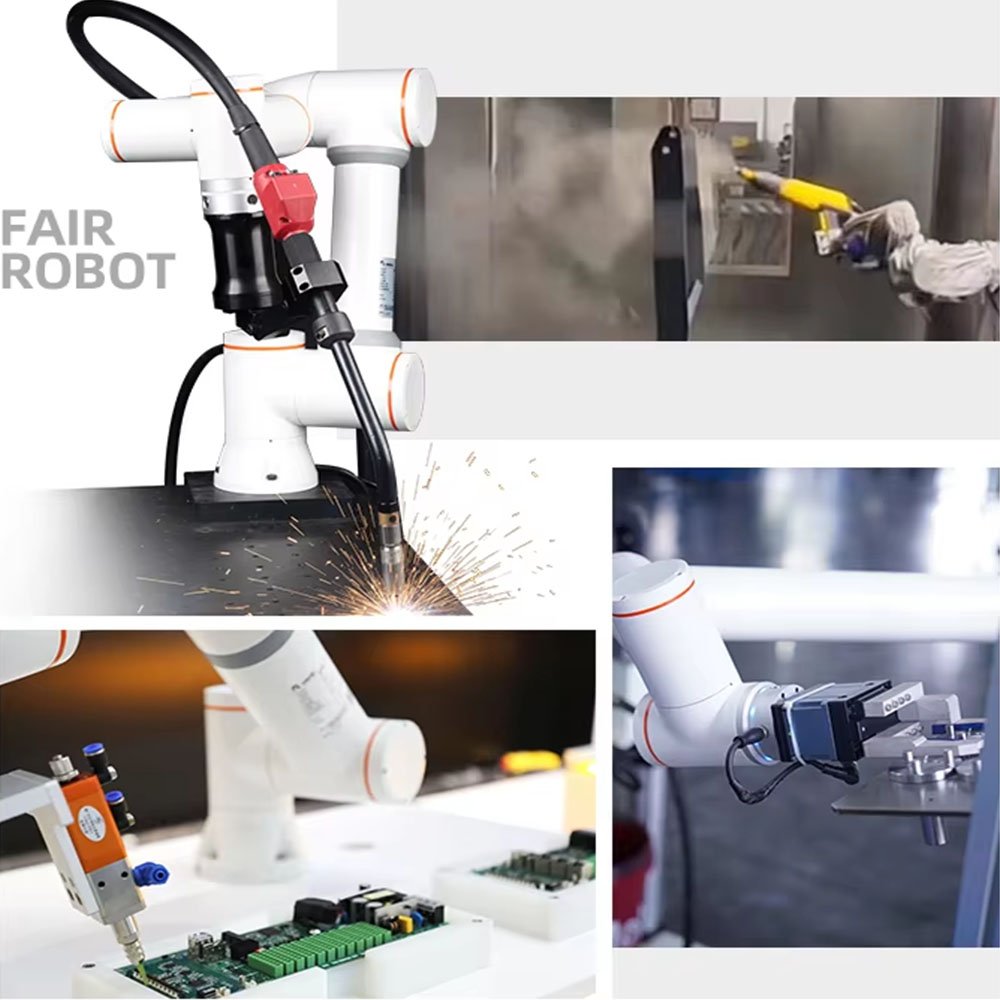

Applications
Exhibition Photos

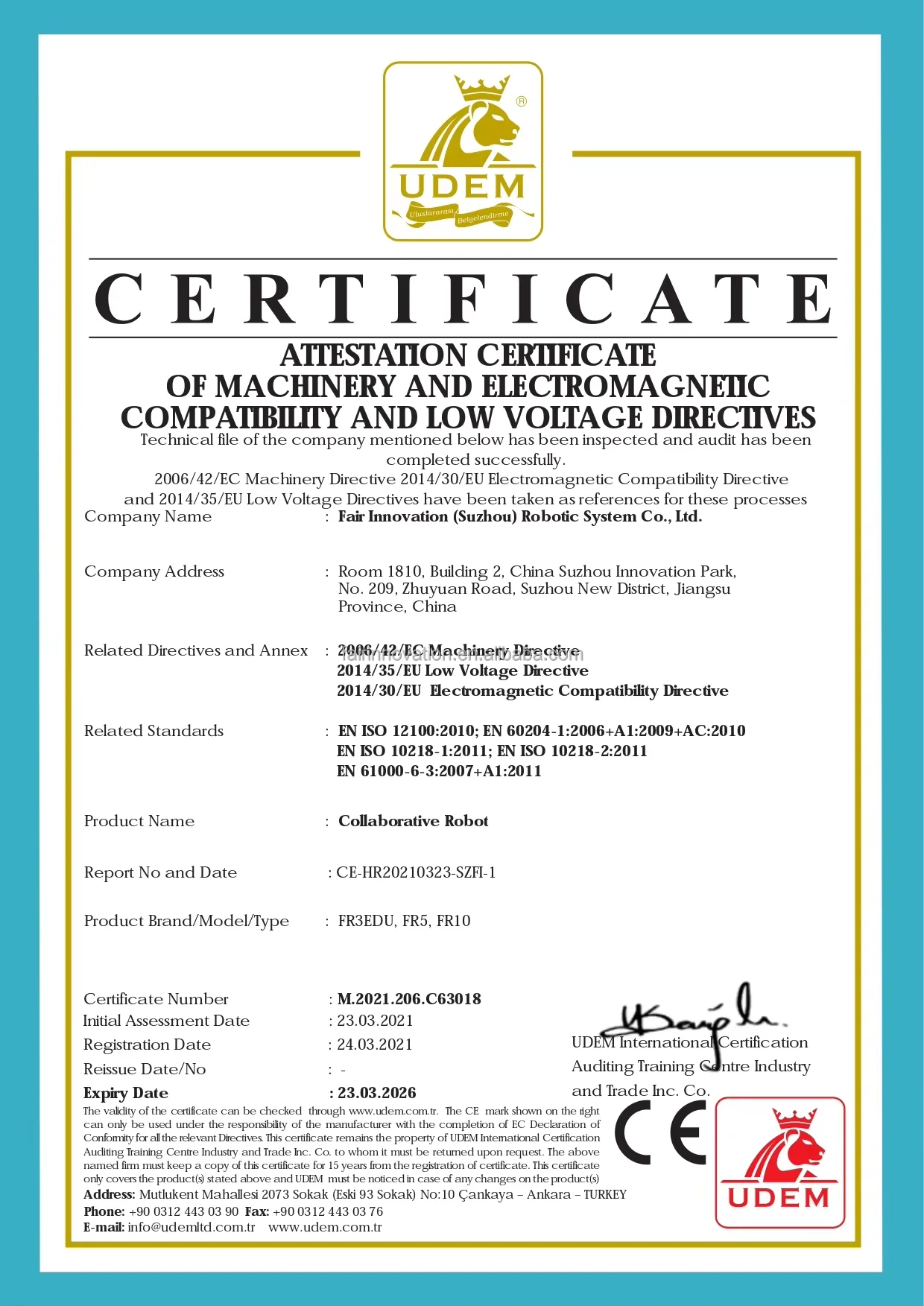

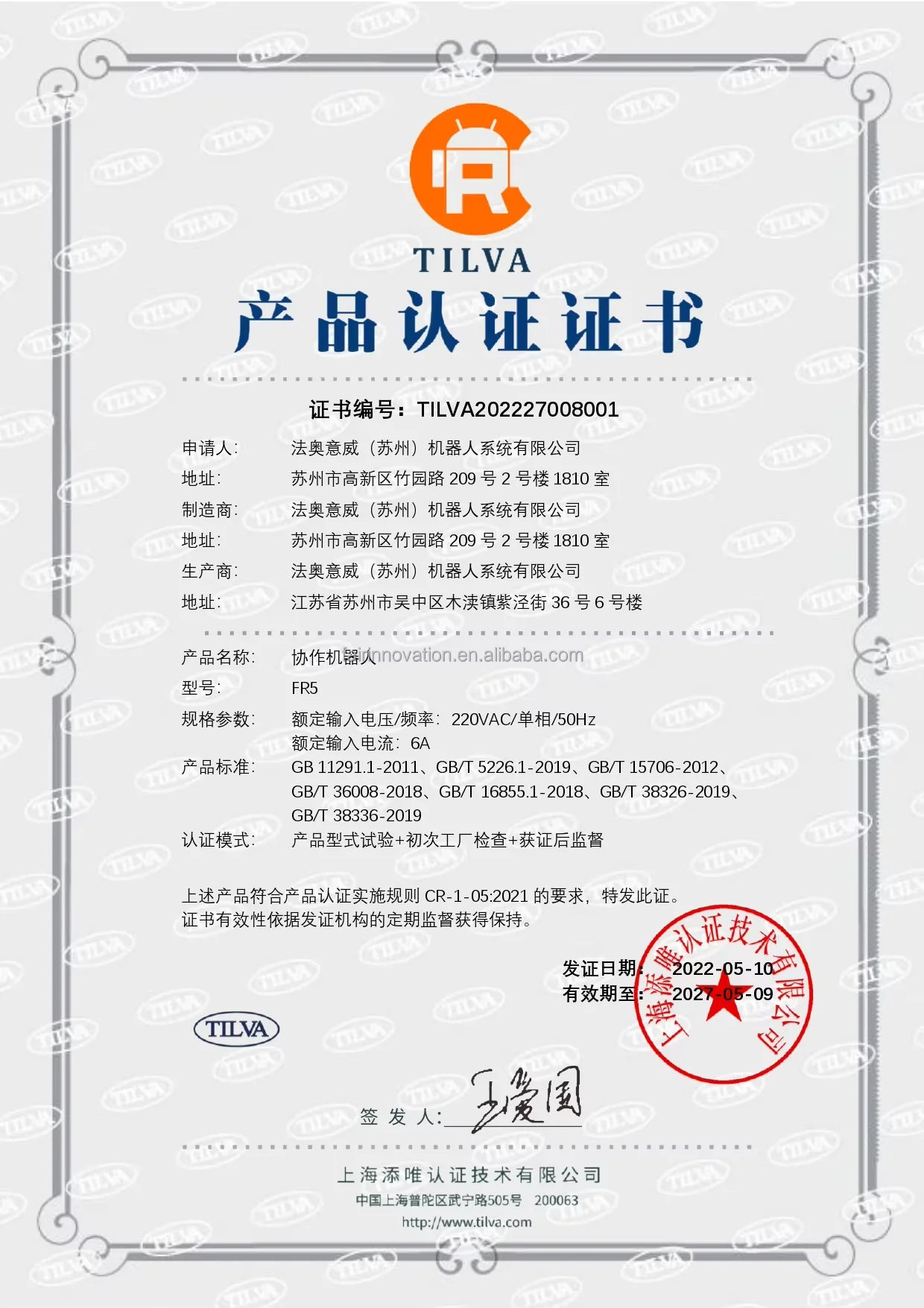

CERTIFICATIONS

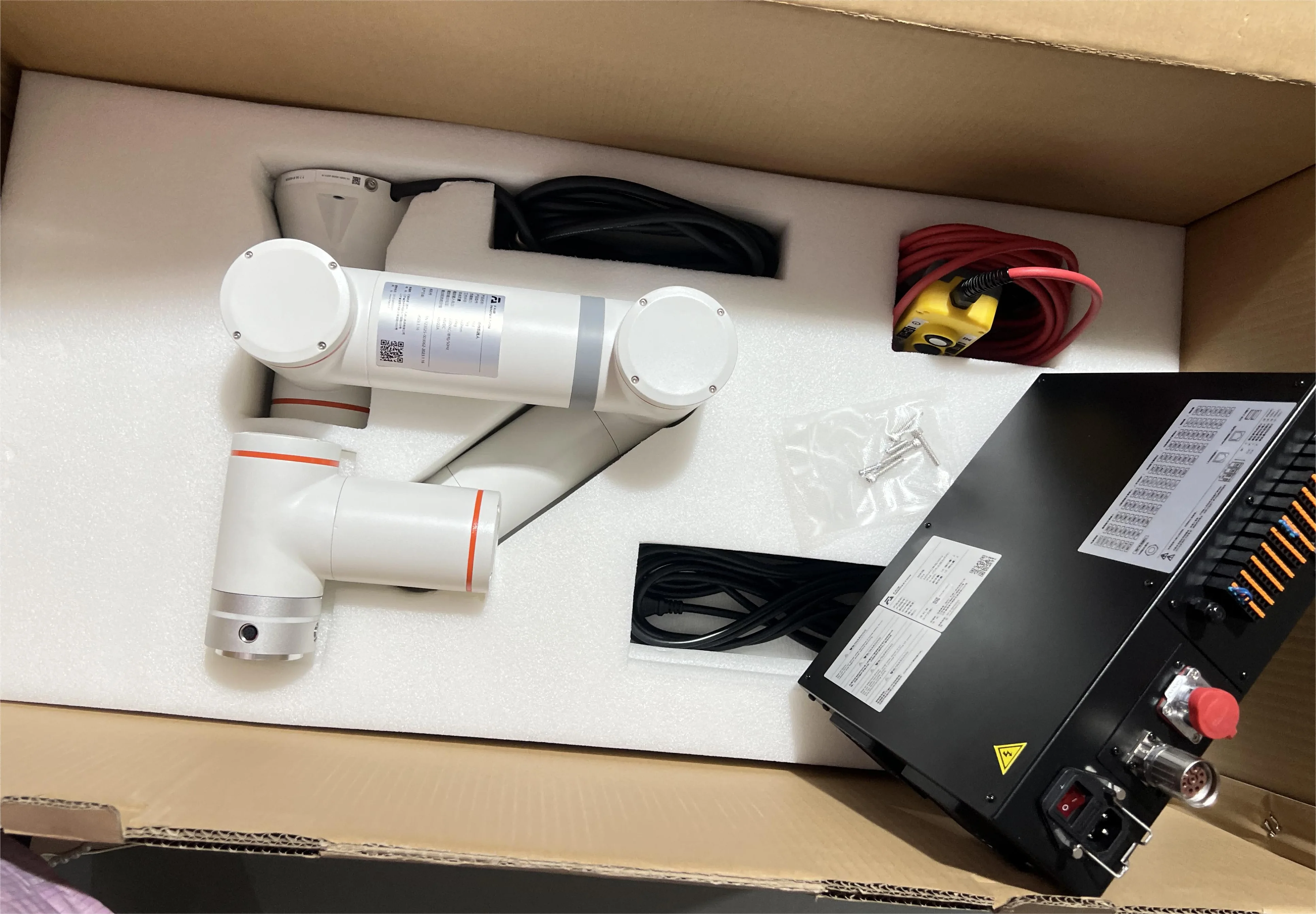

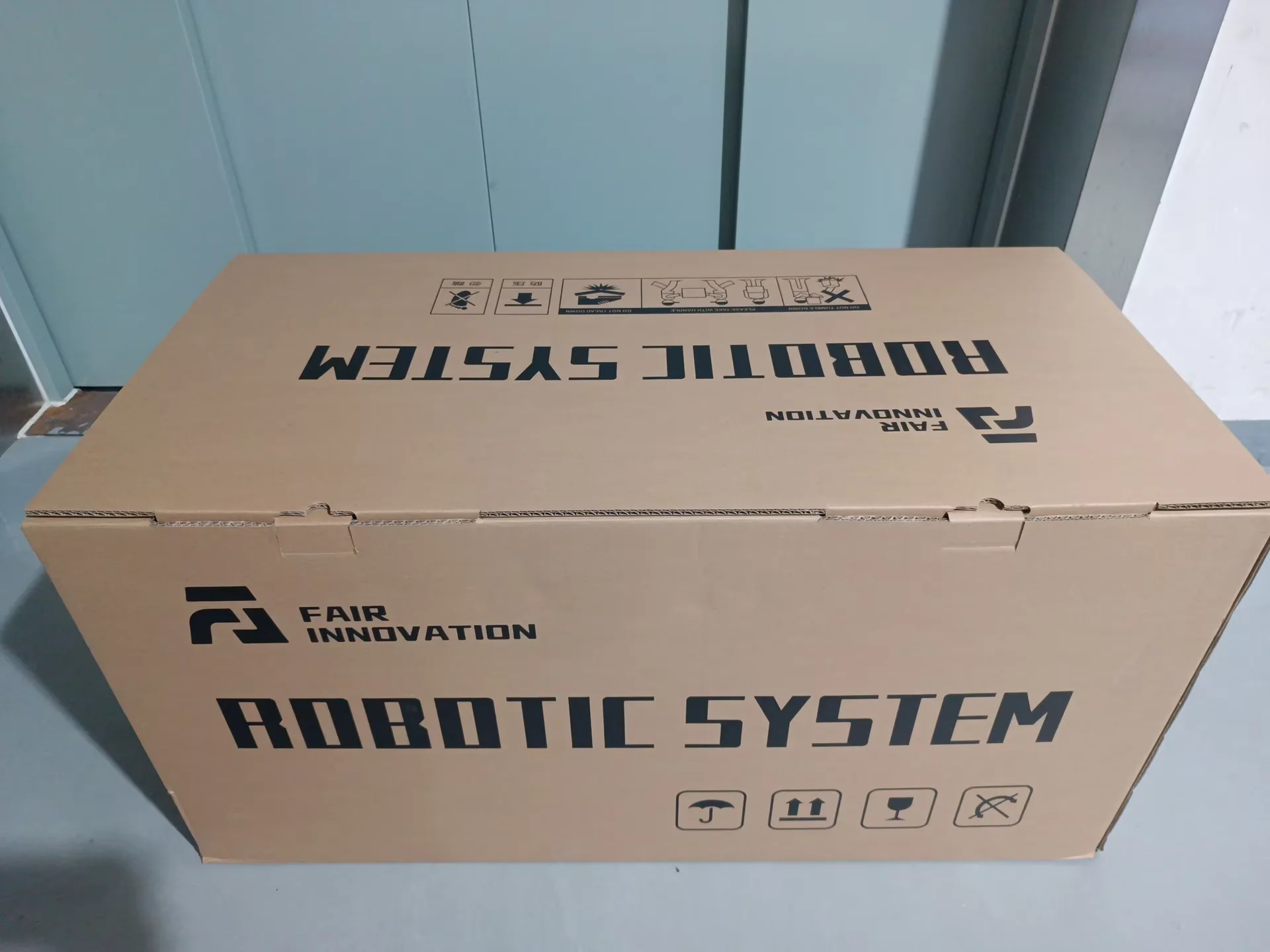

Packing & Delivery
1. Standard export pallet package
2. 1 PCS Packaging size: 90*55*55 CM，GW:30KG
3. Loading port：shang hai,guangzhou,shenzhen,qingdao
4. loading within 5-10 working days after payment
FAQ
Q: Are you a trading company or manufacturer?
A: We are an experienced manufacturer with a factory covering an area of 30,000 square meters.
Q: How to choose the right robot model?
A: Acoording to the application, your products weight and the needs of arm length. You can send us the video of your workers'oparation, and then we will recommend the most suit model for you.
Q: Can I have my own customized product?
A: Yes.OEM are available,including logo,package etc.
Q: How long is the warranty period of your robot?
A: 1 year warranty and lifetime maintenance.
Q: What's the delivery time?
A: Within 5-10 days for ready stock order.The exact time depends on actual situation.
Q: What payment do you accept?
A: In general, our payment is trade assurance order for retail order and bulk order accept T/T ,Deposit and etc.
